Redirect network traffic (ICMP redirect)

In some legacy ethernet LANs, you may encounter a flat network with a huge subnet with hundreds or even thousands of PCs on it. As network grows in complexity, more gateways are added to link this LAN to more external networks. For most PCs, you would expect that only default route exists on them. How do the PCs able to send traffics to external networks without adding static routes on them? This is a classic example from Cisco, which used ICMP redirect.

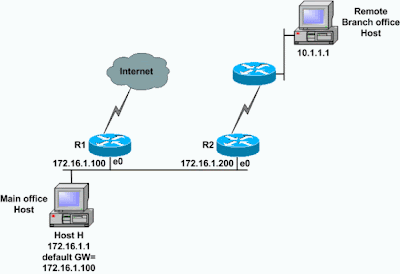

For example, the two routers R1 and R2 are connected to the same Ethernet segment as Host H. The default gateway for Host H is configured to use router R1. Host H sends a packet to router R1 to reach the destination on Remote Branch office Host 10.1.1.1. Router R1, after it consults its routing table, finds that the next-hop to reach Host 10.1.1.1 is router R2. Now router R1 must forward the packet out the same Ethernet interface on which it was received. Router R1 forwards the packet to router R2 and also sends an ICMP redirect message to Host H. This informs the host that the best route to reach Host 10.1.1.1 is by way of router R2. Host H then forwards all the subsequent packets destined for Host 10.1.1.1 to router R2.



ICMP redirect is enabled on most Cisco routers by default. However, it is disabled by Cisco security devices (e.g. PIX/ASA) by default. To permit same interface redirect or icmp redirect, issue this command: same-security-traffic permit inter-interface
